MaxxECU GEN2 TRACK – Waterproof High-Performance Standalone ECU

The MaxxECU GEN2 TRACK is a next-generation standalone engine management system designed for high-performance engines, motorsport, tuning applications, and demanding custom builds. Combining advanced engine control with a robust IP68 waterproof aluminium housing, the GEN2 TRACK delivers precise control, extensive connectivity, and reliable operation in demanding environments.

With support for up to 8 sequential cylinders, 8 injector outputs, 8 ignition outputs, dual wideband lambda, dual knock control, dual CAN, high-speed data logging, and a built-in 550 kPa MAP sensor, the MaxxECU GEN2 TRACK provides everything needed for advanced engine management.

Next-Generation Engine Management

The MaxxECU GEN2 TRACK is engineered for tuners, motorsport teams, and performance enthusiasts who require maximum control over their engine. The ECU combines powerful hardware with the intuitive MaxxECU MTune software, providing extensive tuning, configuration, logging, and real-time monitoring capabilities.

Wireless connectivity via WiFi and Bluetooth also allows the ECU to communicate with compatible devices. Using the MDash Android app, important engine parameters can be monitored wirelessly in real time.

Up to 8 Sequential Cylinders

The GEN2 TRACK supports sequential control for up to 8 cylinders and features 8 injector outputs and 8 ignition outputs. This makes it suitable for a wide range of high-performance four-, six-, and eight-cylinder engines.

Built-In 550 kPa MAP Sensor

The MaxxECU GEN2 TRACK features an integrated 550 kPa MAP sensor, supporting up to approximately 4.5 bar absolute pressure. This makes the ECU well suited to turbocharged and supercharged engines running high boost pressure.

Waterproof IP68 Housing

The GEN2 TRACK features a durable black powder-coated aluminium housing with an IP68 water-protection rating. This makes it an excellent choice for motorsport, track cars, performance vehicles, and applications where the electronics may be exposed to moisture or water.

Extensive Inputs and Outputs

The MaxxECU GEN2 TRACK provides a comprehensive range of inputs and outputs for sensors, actuators, and advanced engine control functions:

• 16 analogue inputs
• 6 PULSE inputs
• 8 injector outputs
• 8 ignition outputs
• Dual wideband lambda
• Dual knock control
• Dual CAN
• Integrated 550 kPa MAP sensor
• WiFi and Bluetooth connectivity

Advanced Engine Management Features

The MaxxECU GEN2 TRACK offers an extensive range of functions for modern performance engines and motorsport applications:

• Volumetric efficiency fuel tuning
• Triple-stage boost control
• Launch control
• Anti-lag with cooldown functions
• Traction control and power management
• Shift cut and sequential gearbox control
• Flexfuel
• Nitrous control with purge and multiple stages
• Knock control
• VANOS / VVTi and variable valve timing
• Automatic transmission control
• OEM CAN integrations
• DSG / DCT / ZF 8HP CAN gearbox control
• Internal data logging up to 1000 Hz

Transmission and CAN Integration

With dual CAN communication, the MaxxECU GEN2 TRACK can be integrated into complex vehicle and drivetrain systems. The ECU supports communication with OEM CAN systems as well as transmission controllers for DSG, DCT, and ZF 8HP gearboxes.

This makes the GEN2 TRACK particularly suitable for engine and transmission swaps where advanced communication between the engine management system and gearbox controller is required.

MaxxECU MTune Software

The MaxxECU GEN2 TRACK is configured and tuned using the powerful MaxxECU MTune software. MTune provides access to engine management parameters, configuration, data logging, diagnostics, and real-time monitoring.

The combination of powerful tuning software and extensive hardware functionality gives you complete control over your engine and allows the ECU to be configured to suit almost any high-performance application.

Available Versions

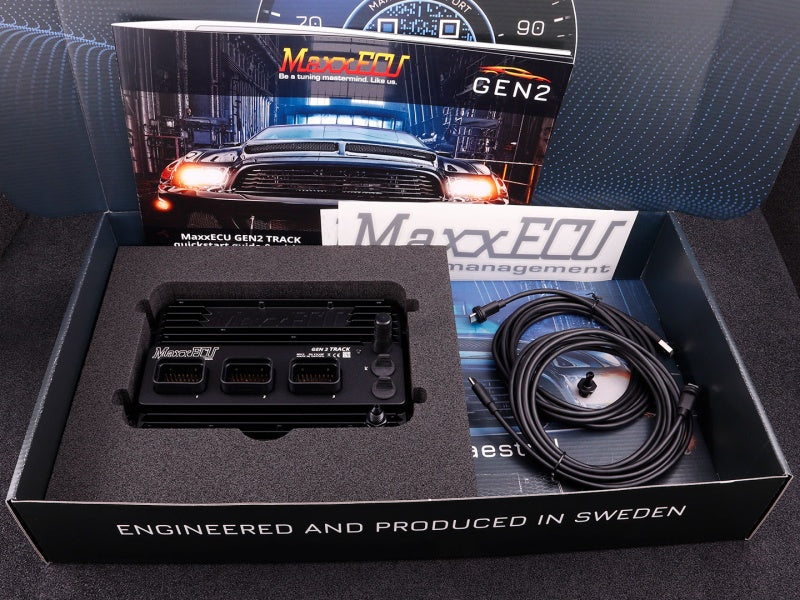

Option 1 – MaxxECU GEN2 TRACK, Unit with Basic Accessories in Box

Maxx ID: 2543

The basic MaxxECU GEN2 TRACK package supplied with the necessary basic accessories. Ideal for professional installations where the wiring and connectors will be custom-built for the specific application.

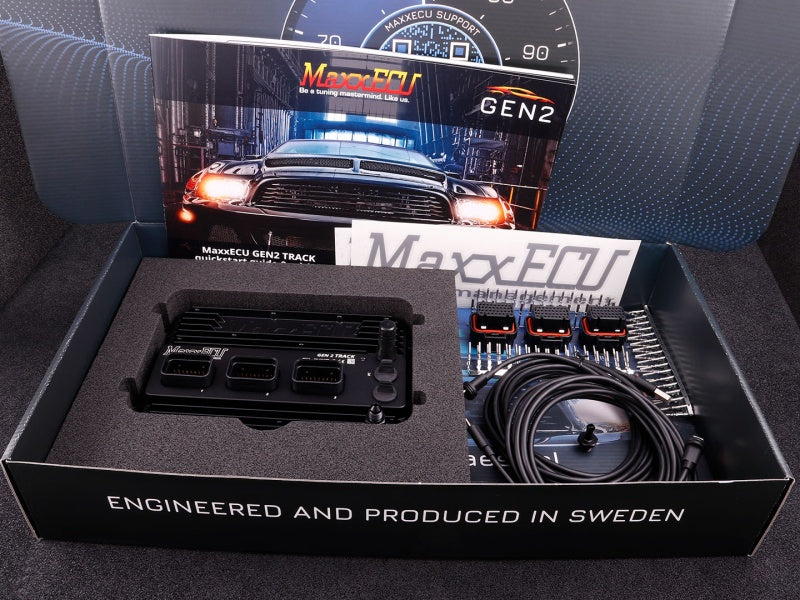

Option 2 – MaxxECU GEN2 TRACK, with Connector Kit

Maxx ID: 2530

The GEN2 TRACK supplied with a connector kit. This version is ideal for custom installations where you want to build or modify the engine wiring harness to suit your specific engine and vehicle configuration.

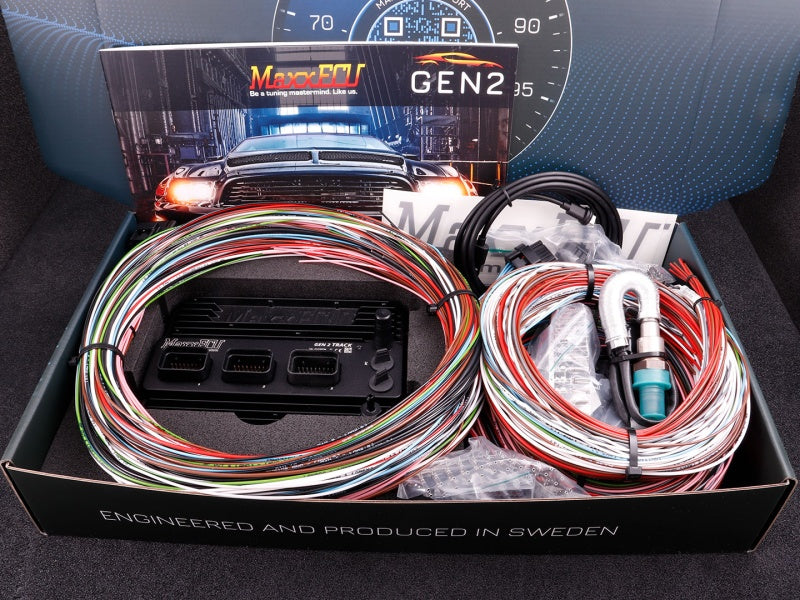

Option 3 – MaxxECU GEN2 TRACK, with LSU 5.2 and Flying Lead Install Kit

Maxx ID: 2536

This version includes a Bosch LSU 5.2 wideband lambda sensor and flying lead installation kit, making it a practical solution for professional custom engine management installations.

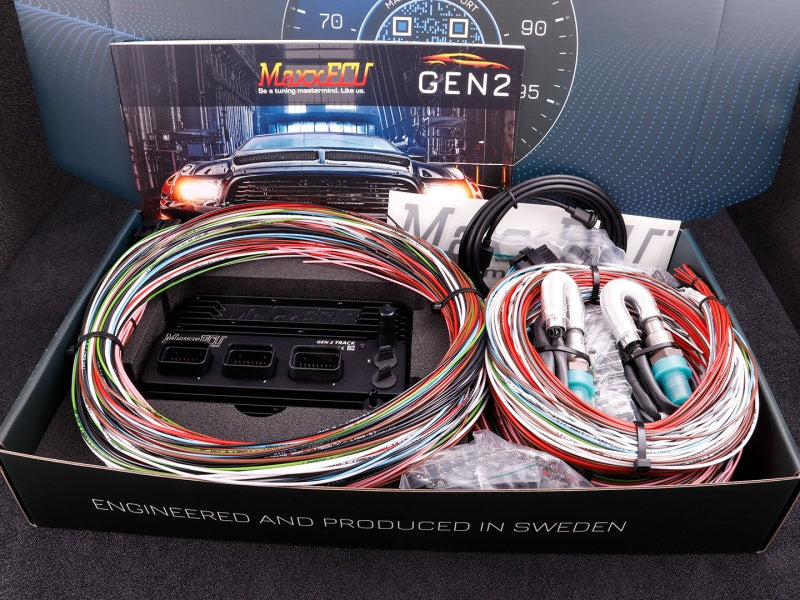

Option 4 – MaxxECU GEN2 TRACK, with Dual LSU 5.2 and Flying Lead Install Kit

Maxx ID: 2537

The most complete version, including two Bosch LSU 5.2 wideband lambda sensors and a flying lead installation kit. This configuration is ideal for engines where independent wideband lambda monitoring of both banks is required.

Why Choose the MaxxECU GEN2 TRACK?

• Next-generation MaxxECU hardware
• Waterproof IP68 aluminium housing
• Sequential control for up to 8 cylinders
• Integrated 550 kPa MAP sensor
• Dual wideband lambda control
• Dual knock control
• 16 analogue inputs and 6 PULSE inputs
• 8 injector outputs and 8 ignition outputs
• Dual CAN
• WiFi and Bluetooth
• Internal data logging up to 1000 Hz
• Advanced boost, launch, traction, and anti-lag functions
• Flexfuel and multi-stage nitrous control
• DSG, DCT, and ZF 8HP CAN gearbox control
• Full configuration through MaxxECU MTune

MaxxECU GEN2 TRACK for High-Performance Applications

The MaxxECU GEN2 TRACK is a powerful standalone ECU for high-performance engines, motorsport, tuning, engine swaps, and custom vehicle projects. With advanced engine management functionality, dual wideband lambda, dual CAN, high-speed logging, wireless connectivity, and an IP68 waterproof housing, it provides an excellent combination of performance, flexibility, and reliability.

KCPerformance is an official MaxxECU dealer. We supply MaxxECU standalone engine management systems and can help you select the correct ECU, wiring harness, lambda sensors, and accessories for your engine or conversion project.
