MaxxECU PRO – Engine Management

The MaxxECU PRO has been developed from the ground up to provide maximum flexibility, reliability, and speed. This engine management system gives you complete control over your engine, making it the ideal choice for high-performance and motorsport applications.

Key Features

• Supports up to 12 cylinders sequentially
• 16 injector outputs – compatible with low- or high-impedance injectors
• 12 ignition outputs for powerful spark control
• 12 EGT sensor inputs for exhaust gas temperature monitoring
• Built-in MAP sensor up to 3 bar / 400 kPa
• Integrated driver for 2 wideband lambda sensors (Bosch LSU 4.2 & 4.9 compatible)
• Full support for dual E-Throttle (DBW)
• Dual knock sensor inputs for advanced detonation detection
• 16 configurable 0-5V inputs
• 6 additional temperature inputs
• 10 digital inputs (4 VR sensor compatible)
• 30 GPO auxiliary outputs (8 with +12V output)
• 2 x 0-5V outputs & 1 x 5-10V sensor output
• Dual CAN-bus communication
• Waterproof aluminium housing
• Fully backwards compatible with standard MaxxECU hardware & software

Why Choose the MaxxECU PRO?

The PRO series is the ultimate choice for serious tuners and racers who refuse to compromise. With its extensive I/O capabilities, dual CAN-bus communication, and support for modern features such as dual drive-by-wire, this ECU platform is the perfect foundation for everything from high-performance street cars to full race vehicles.

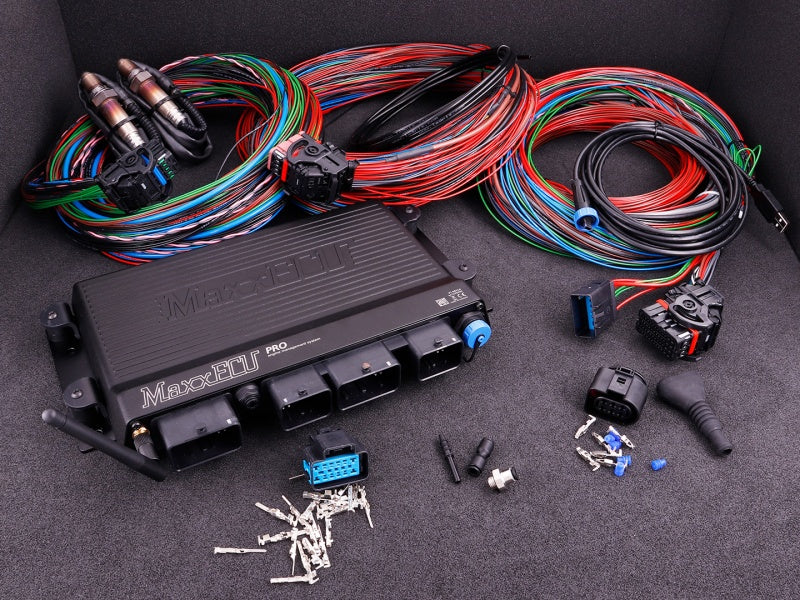

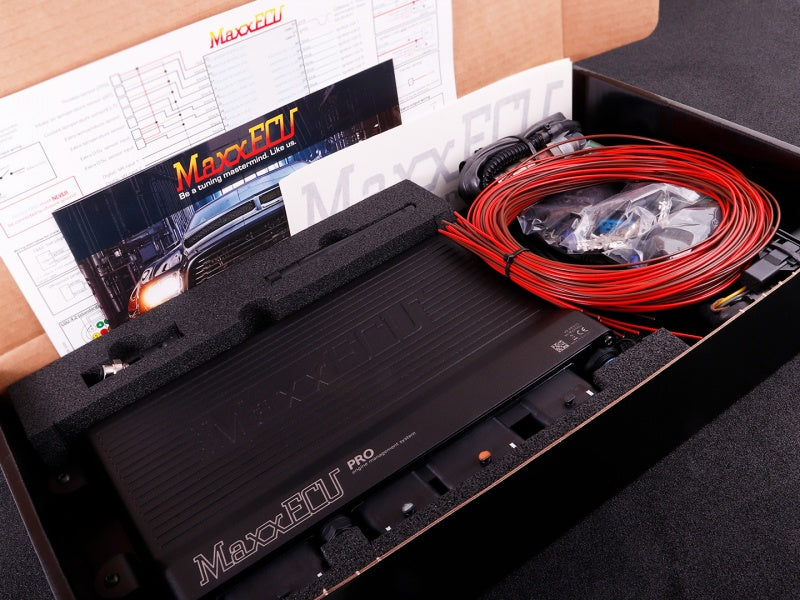

Included: MaxxECU PRO unit, connectors, software, and documentation.
