MaxxECU RACE – High-Performance ECU for Motorsport

The MaxxECU RACE is built on the renowned MaxxECU PRO platform and uses the same powerful and user-friendly MTune software. This system is designed for motorsport and high-performance street applications, providing all the features you need to optimize your engine and deliver reliable performance even under extreme conditions.

Key Specifications

• Waterproof (IP67) – ideal for use in demanding conditions
• Supports all 3-12 cylinder 4-stroke engines
• Up to 8 cylinders fully sequential control
• Up to 12 cylinders in wasted spark configuration
• Support for Bosch LSU 4.2 and 4.9 lambda sensors
• 2 trigger inputs (VR or digital) with automatic level detection
• 2 additional temperature inputs
• 2 knock sensor inputs for accurate detonation monitoring
• 6 additional 0-5V analog inputs
• 4 additional digital inputs (VR / hall) or switches
• 8 EGT inputs (Type K/N) via separate harness – up to 1200°C / 2200°F
• 8 peak/hold injector outputs
• 8 ignition outputs for powerful spark control
• 9 additional low-driving outputs for extra functions
• 2 additional +12V driving outputs
• 4 extra motor outputs

Why Choose the MaxxECU RACE?

With its extensive input and output options, IP67 waterproof housing, and advanced features, the MaxxECU RACE is the perfect choice for race cars, rally vehicles, and serious performance builds. Thanks to the powerful MTune software, the system is easy to configure and tune, giving you full control over fuel, ignition, boost, and more.

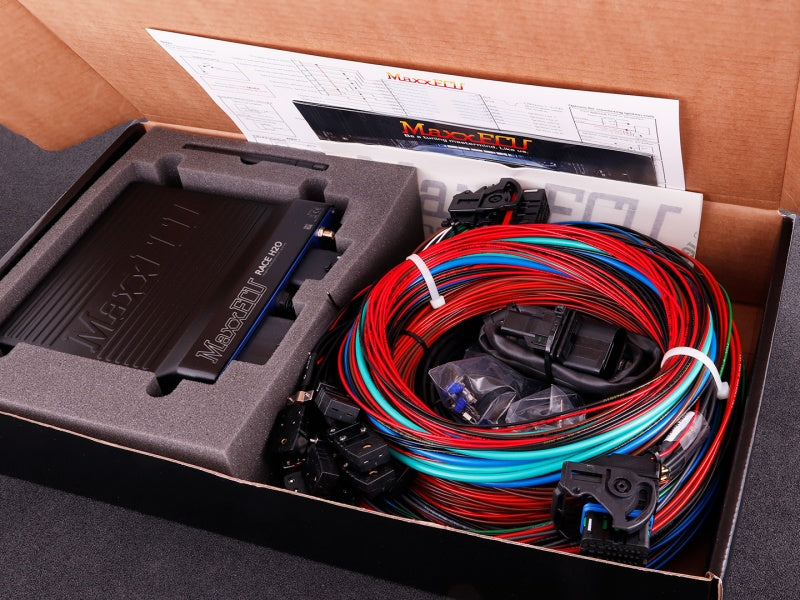

Included: MaxxECU RACE unit, connectors, MTune software, and documentation.
