More Information

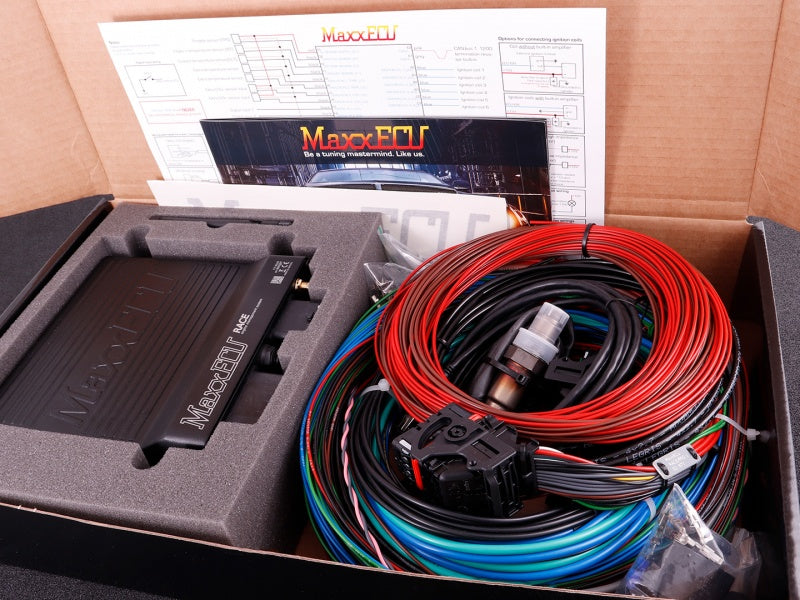

The MaxxECU RACE is based on our MaxxECU PRO and uses the same powerful, yet easy-to-use MTune software. Designed for motorsport and high-performance applications, it provides precise engine control and reliable performance under extreme conditions.

Specifications

• Supports all 3-12 cylinder 4-stroke engines
• Up to 8 cylinders fully sequential
• Up to 12 cylinders in wasted spark configuration
• Supports Bosch LSU 4.2 and 4.9 lambda (WBO) sensors
• 2 trigger inputs (VR or digital) with automatic trigger level detection
• 2 additional temperature sensor inputs
• 2 knock sensor inputs for accurate detonation monitoring
• 6 extra 0-5V analog inputs
• 4 extra digital inputs (VR / hall) or switches
• 8 EGT Type-K/N inputs (up to 1200°C / 2200°F) via separate harness
• 8 peak/hold injector outputs
• 8 ignition outputs for advanced spark control
• 9 additional low-driving outputs for extra features
• 2 extra +12V driving outputs
• 4 extra motor outputs
