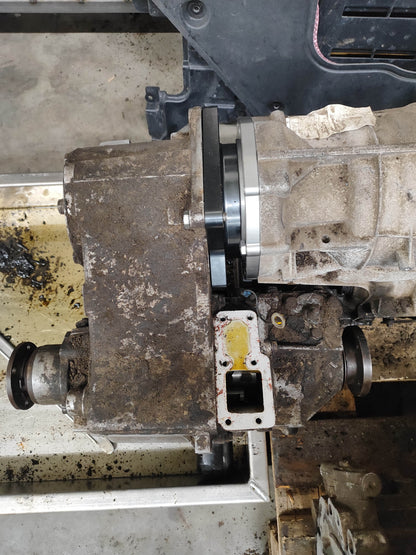

ZF 8HP70X LT230 adapter for Land Rover and Jaguar drivetrain conversion

This engineered adapter kit allows you to mate a Land Rover / Jaguar ZF 8HP70X automatic transmission (4x4 / AWD version) to the LT230 transfer case. The kit is designed for custom AWD and off-road drivetrain builds where strength, reliability and correct geometry are essential.

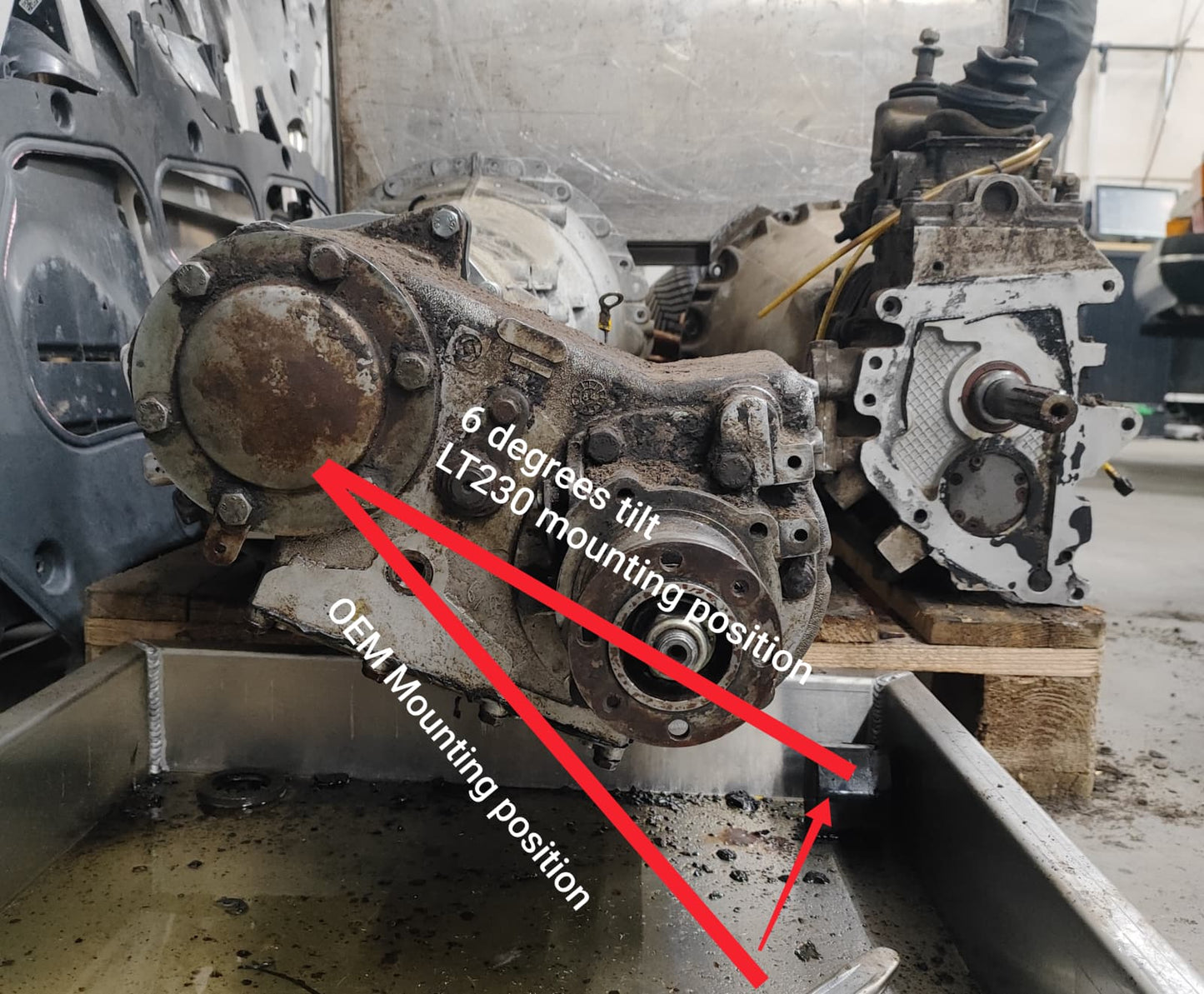

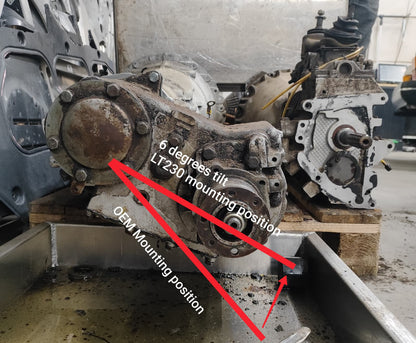

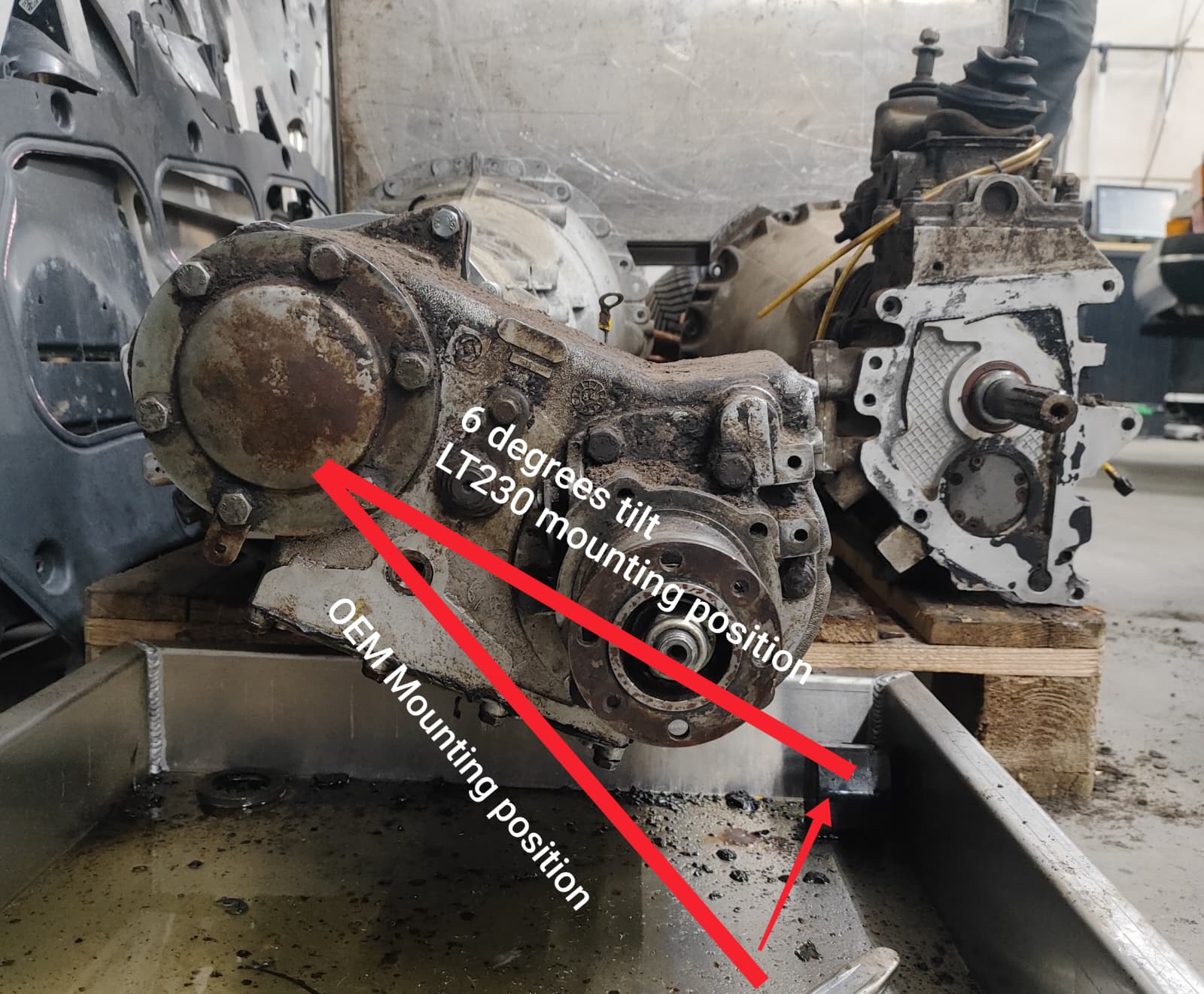

The adapter positions the LT230 transfer case at a fixed 6-degree tilt, ensuring correct fitment.

Key Features

• Perfect Fitment: Specifically designed for JLR-spec ZF 8HP70X AWD transmissions.
• Engine Compatibility: Suitable for Land Rover and Jaguar 2.2D and 3.0D engines.
• Integrated 6° Tilt: Ensures proper LT230 lubrication and correct driveline geometry.
• Compact Design: Minimal adapter thickness for excellent packaging in custom builds.
• High-Strength Construction: CNC-machined from high-grade aluminum for durability and long service life.
• Precision Machining: Accurate centering for vibration-free drivetrain operation.

What’s Included

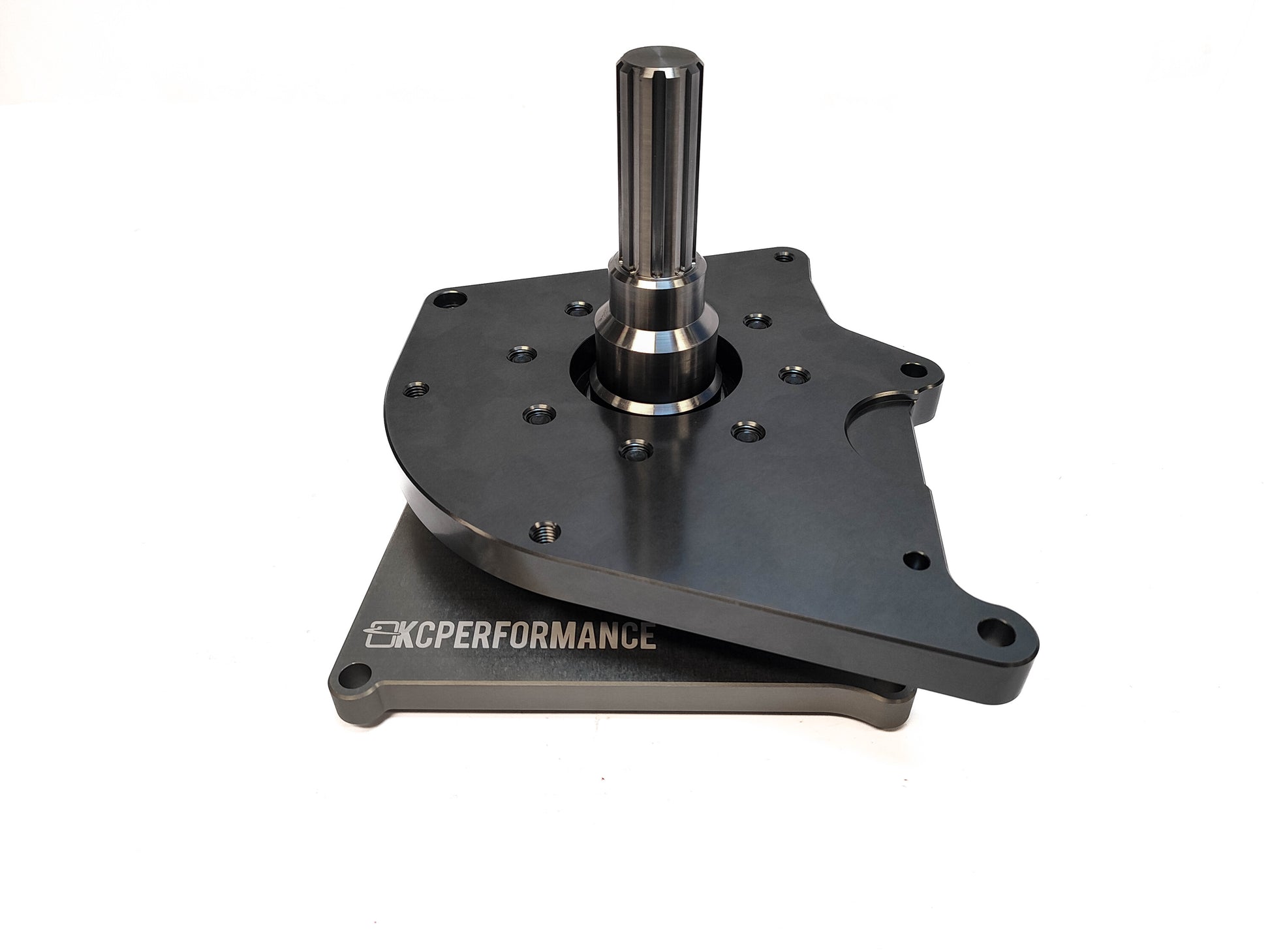

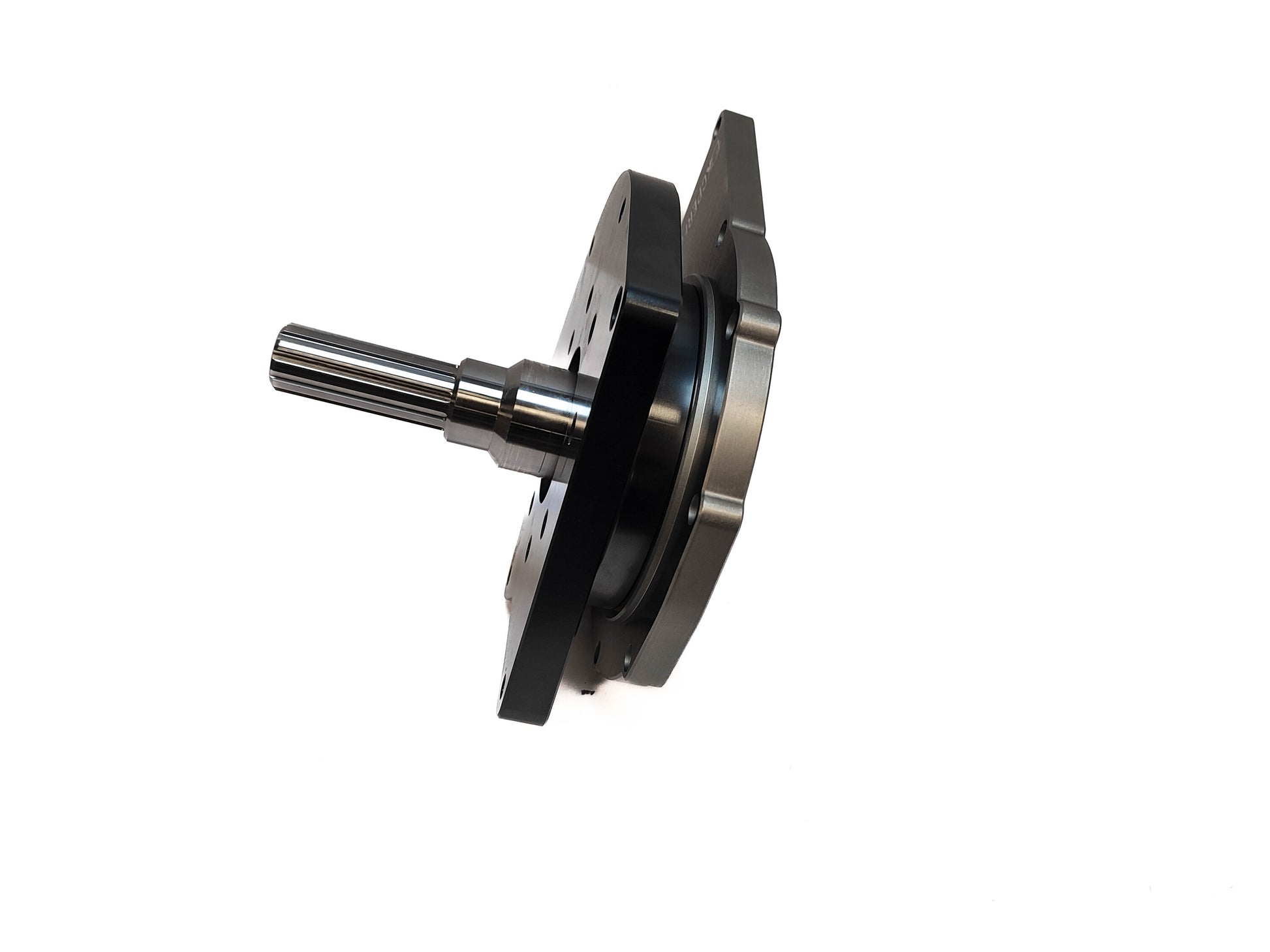

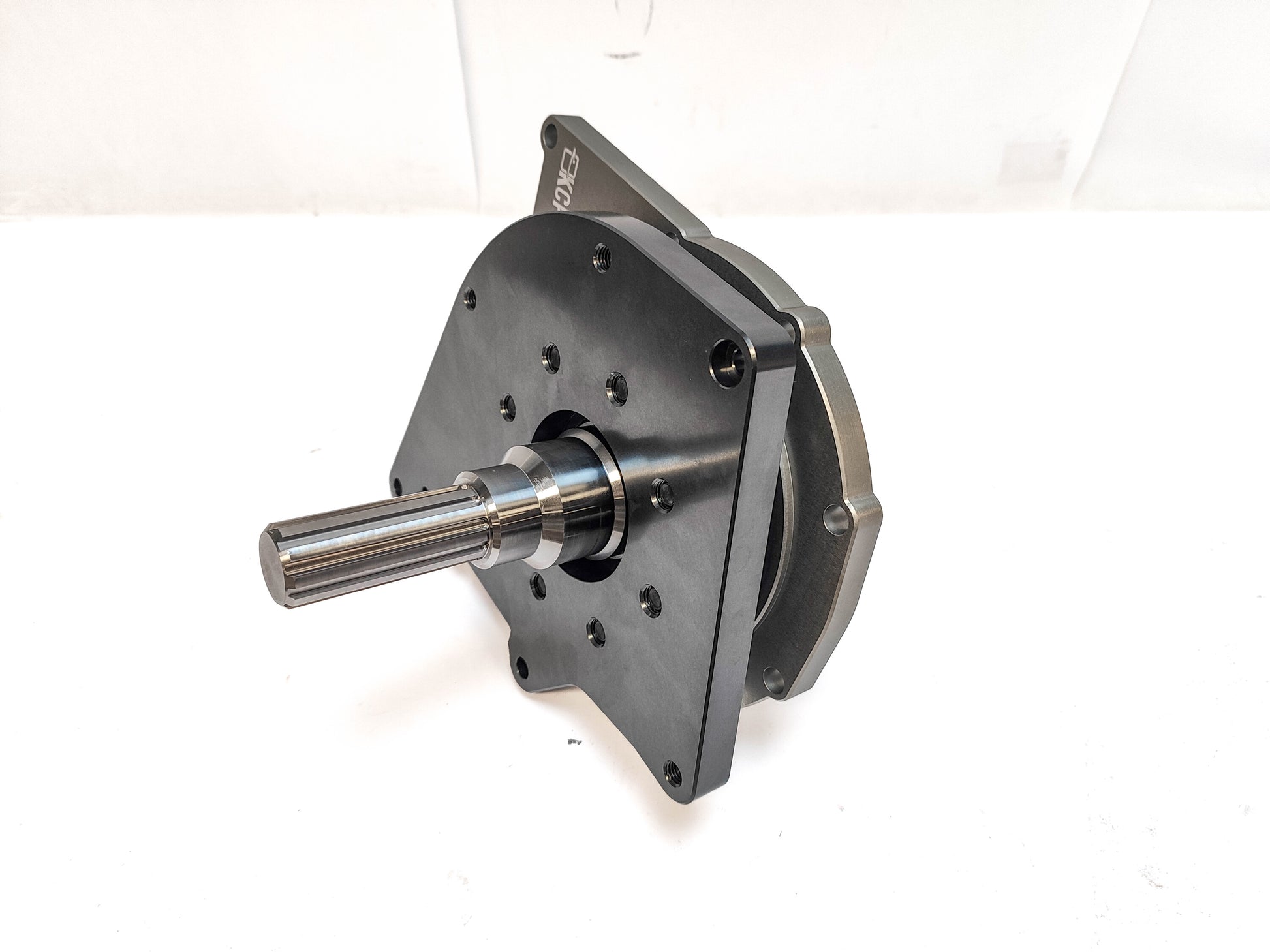

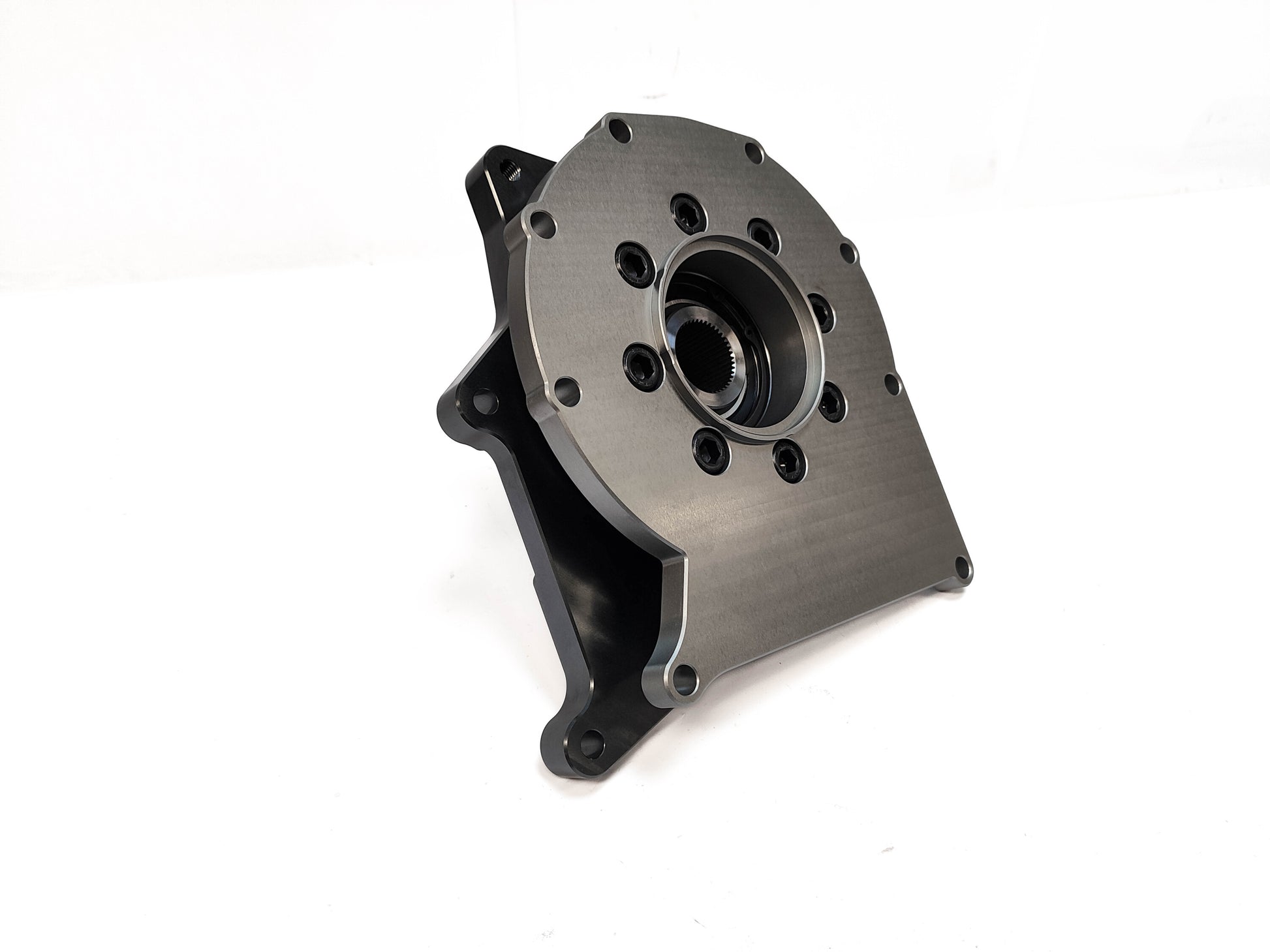

• CNC-machined aluminum adapter plate (ZF 8HP70X JLR to LT230)
• Required mounting hardware

Compatible Gearboxes

• ZF 8HP70X – Land Rover / Jaguar (4x4 / AWD)

Compatible Engines

• Jaguar / Land Rover 2.2D
• Jaguar / Land Rover 3.0D

Applications

• Land Rover drivetrain conversions
• Jaguar AWD drivetrain swaps
• Custom off-road and overland builds
• High-performance AWD project vehicles

Note: Gearbox and transfer case are not included. This adapter is designed exclusively for ZF 8HP70X (AWD) transmissions and the LT230 transfer case.

Upgrade your drivetrain with a compact and reliable solution. The ZF 8HP70X JLR to LT230 adapter kit delivers correct geometry, strength and durability for serious AWD and off-road applications.

Built for JLR 2.2D and 3.0D Applications

The ZF 8HP70X LT230 adapter is designed for Land Rover and Jaguar vehicles fitted with JLR 2.2D and 3.0D engines, giving builders a practical way to connect the ZF 8HP70X automatic transmission to the proven LT230 transfer case. This kit is made for conversion projects that need strength, correct alignment, and dependable driveline integration. Whether you are upgrading a work vehicle or building a custom off-road setup, the adapter helps simplify the swap while preserving the rugged low-range capability of the LT230. It is an ideal solution for enthusiasts who want modern transmission performance with classic transfer case durability.

Strong Fitment for Reliable Drivetrain Performance

Designed with precise fitment in mind, this adapter kit helps reduce the guesswork often found in transmission conversion work. The ZF 8HP70X LT230 adapter supports a secure connection between the gearbox and transfer case, helping maintain proper driveline alignment and smooth power transfer. This is especially important in vehicles that see demanding use on-road and off-road. A well-matched adapter can improve installation confidence and reduce the risk of driveline issues caused by poor spacing or incorrect mounting. For Land Rover and Jaguar projects, that means a cleaner build, better reliability, and a stronger foundation for long-term performance.

Ideal for Off-Road and Custom Conversion Builds

This adapter kit is a smart choice for drivers planning a serious conversion or restoration project. By pairing the ZF 8HP70X automatic transmission with the LT230 transfer case, you retain a trusted low-range system that is well known in Land Rover applications. The result is a drivetrain setup that can handle towing, trail use, expedition travel, and daily driving with improved flexibility. Builders looking for a balance of modern transmission efficiency and traditional four-wheel-drive capability will appreciate the value this kit brings. It is especially useful for custom builds where performance, strength, and compatibility all matter.

Simple Solution for a Cleaner, More Complete Swap

Choosing the right adapter is one of the most important steps in any transmission conversion, and this kit is intended to make that process easier. The ZF 8HP70X LT230 adapter provides a focused, purpose-built solution for Land Rover and Jaguar owners who want to complete a professional-quality swap. It supports a neater installation and helps reduce fabrication time compared with making custom parts from scratch. For workshops and experienced DIY builders alike, it offers a practical path toward a complete drivetrain conversion. If your goal is to combine the efficiency of the ZF 8HP70X with the durability of the LT230, this adapter kit delivers the connection you need.
