ZF 8HP to LT230 Transfer Case Adapter Kit – BMW 8-Speed AWD to Land Rover LT230

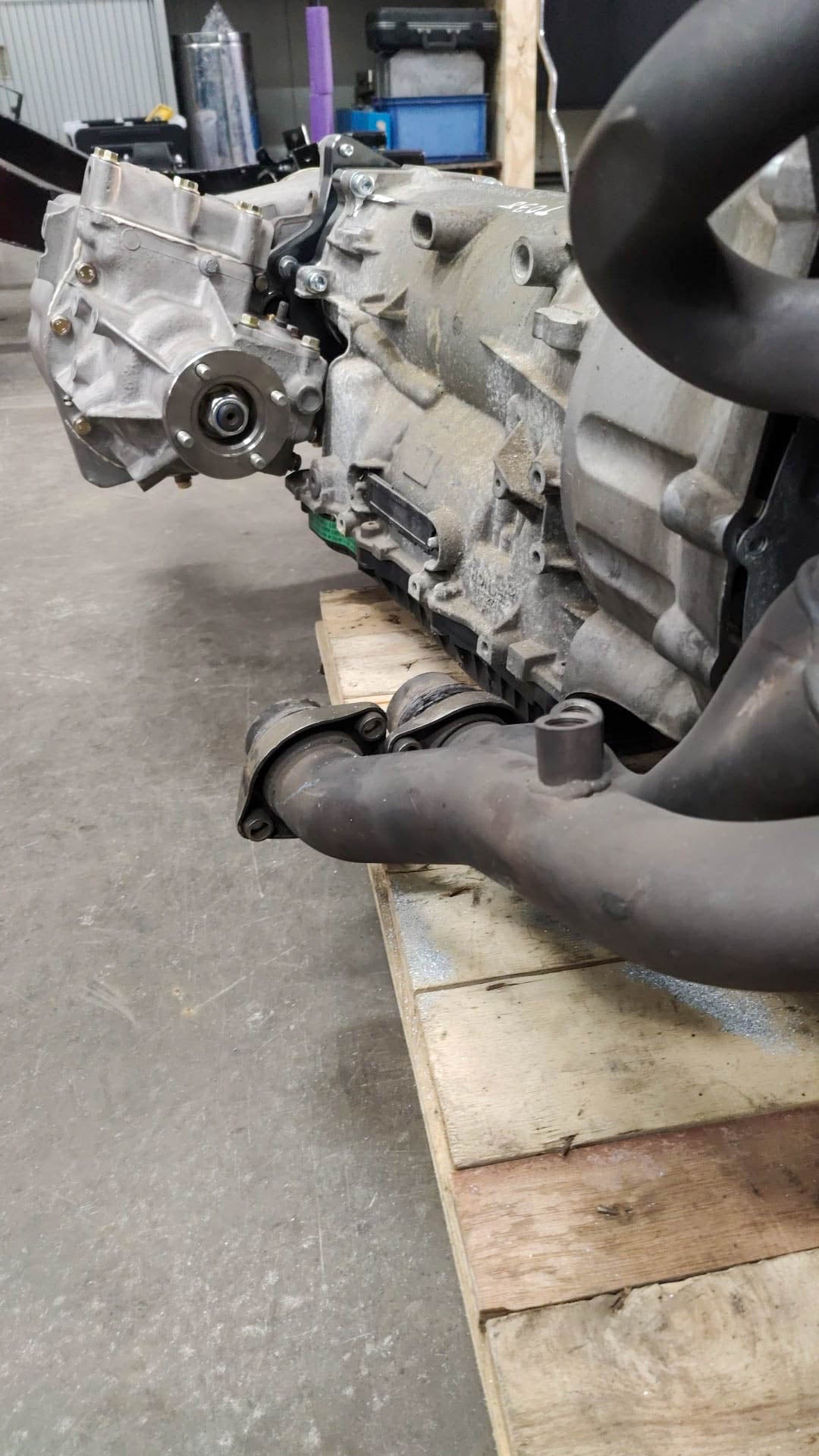

Upgrade your drivetrain with this precision-engineered adapter kit designed to mate a BMW ZF 8HP AWD transmission to a Land Rover LT230 transfer case. Developed for high-performance AWD conversions, this solution offers a compact, strong and reliable interface between BMW’s modern 8-speed automatic gearbox and the legendary LT230.

The adapter positions the transfer case at a fixed 16-degree tilt, ensuring correct drivetrain geometry, optimal driveline angles and proper lubrication of the LT230 transfer case in custom installations.

Key Features

• Perfect Fitment: Specifically engineered to mate BMW ZF 8HP AWD transmissions to the Land Rover LT230 transfer case.
• Supported BMW 8HP AWD Gearboxes:
  8HP45X / 8HP50X / 8HP51X
  8HP70X / 8HP75X / 8HP76X
  8HP90X / 8HP95X
• Integrated 16° Tilt: Adapter sets the LT230 at a 16-degree angle up compared with stock location for tight fit with BMW ZF 8HP AWD.
• Ultra-Compact Design: Adapter thickness of only 60 mm, making it one of the most compact solutions available.
• High-Strength Construction: CNC-machined from aerospace-grade aluminum and finished in dark grey anodizing.
• Premium Details: CNC-engraved markings and logo for a professional motorsport-grade appearance.

What’s Included

• CNC-machined billet aluminum adapter plate (BMW 8HP AWD to LT230)
• Custom LT230 input shaft made from high-strength steel with BMW 8HP spline profile
• Adapter plate bolts
• Bearing seal and retaining clips

Applications

This adapter kit is ideal for custom AWD builds combining BMW ZF 8HP AWD transmissions with a Land Rover LT230 transfer case. Common applications include high-performance off-road vehicles, restomods, rally builds and unique road-going AWD conversions.

Note: Gearbox and transfer case are not included. If this kit is not in stock, please allow for extended lead times due to the complex machining process of the custom input shaft.
